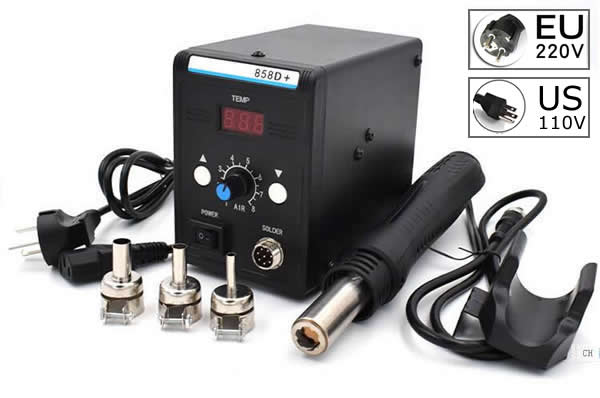

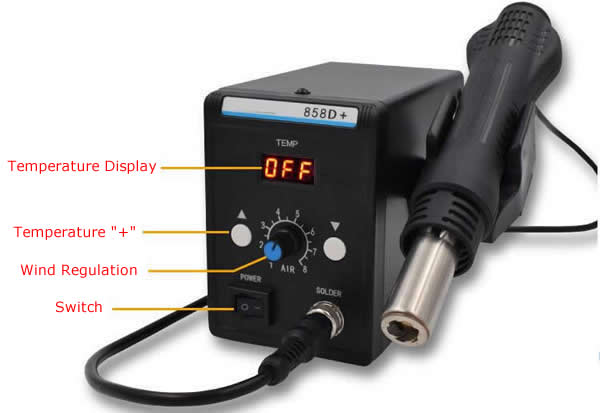

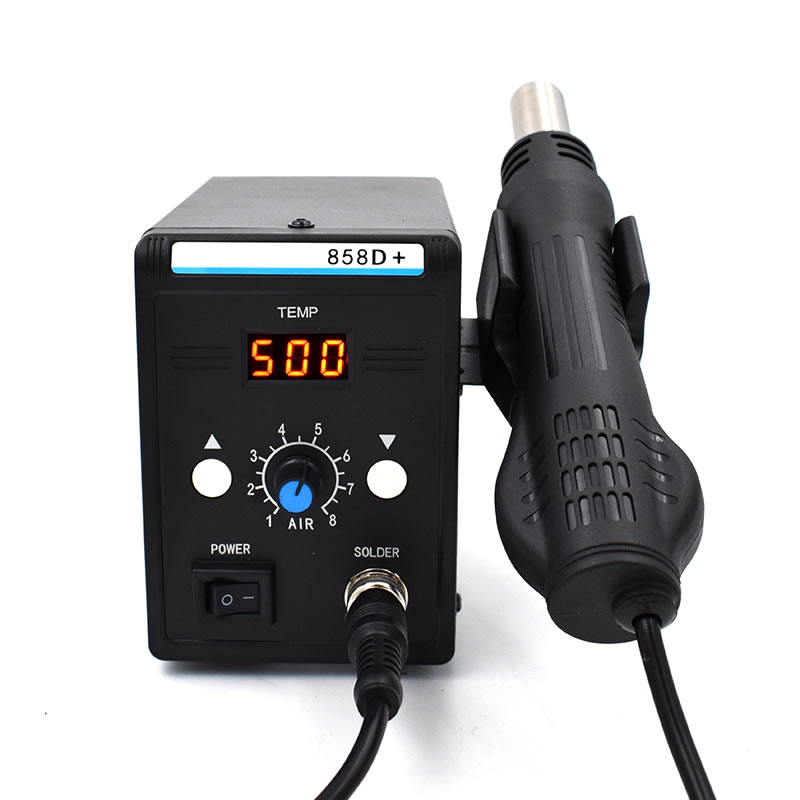

Hot Air Gun Station



This tool is used to swap the BIOS chip on a hard drive PCB, the temperature can be set between 380-400 degrees. Small chip (BIOS) can be blown down directly, and large chip (Main Controller IC) can be blown in circles.

Power Voltage: 220V/110V;
Plug type:EU/US
Blower fan :Brushless Fan
Amount of Wind:120L/m(MAX)
Temperature Range:100°-450°
Discharge Feature:LED indicator light
Handle Length :120cm
Noises :<45db
Weight:1.6KG;

Three steps to swap the BIOS chip:
1. Heat the BIOS chip to un-solder it from your original PCB;
2. Do the same with the donor PCB;
3. Solder the original BIOS chip on the donor PCB;

HDD PCB BIOS Swapping Tool Hot Air Gun Station

HDD PCB BIOS Swapping Tool Hot Air Gun Station

Tips: Most of the TV/Phone/Electronic Repair Shop can offer BIOS Chip Swapping service for just $5-20.

How-to video: How to transfer the BIOS Chip of the HDD PCB?

  • Model: HRT10100
  • Shipping Weight: 2000 g
  • 89 Units in Stock
  • Manufactured by: HDDZone
