How to repair Toshiba PCB G003220A

If a Toshiba hard disk drive with the PCB board G003220A inside has the following failure symptoms, you need to replace and repair it in order to recover data on it, this article will show you how to buy a matching donor (replacement) PCB G003220A and how to replacing it step by step.

Hard Drive PCB Failure Symptoms:

• Hard drive can't spin up (If you hear a tick, or do not hear or feel any movement, the PCB is probably defective);
• A burning smell can be sensed coming from the hard drive; Burnt hard drive PCB components ("Motor Control Chip" burnt, "TVS Diodes" burnt, "Main Controller IC" burnt) on the PCB;
• The HDD be connected to wrong power supply;
• HDD PCB's interface damaged;

Steps to repair Toshiba HDD PCB G003220A

Step 1: Find a donor Toshiba PCB G003220A

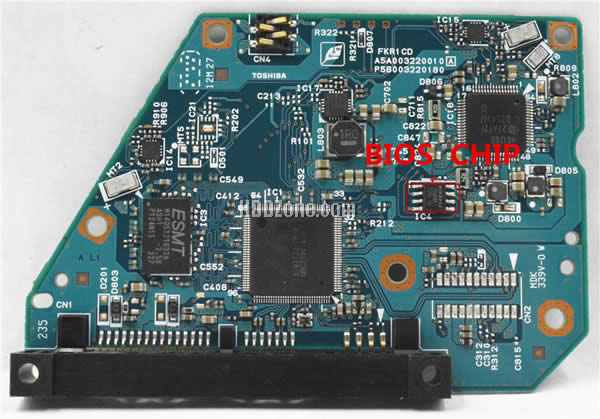

To buy a matching donor PCB for Toshiba HDDs, we need to make sure the "Board Number" on the PCB is the same. Board number is begin with "G00***". Check the board number on your hard drive, make sure it is "G003220A".

Note: We have listed some models of hard drives which are using the G003220A PCB on hddzone.com for convenience, but to make sure, you'd better to unscrew your hard disk and have a look on the board.

Step 2: Buy Toshiba PCB G003220A Online

Then search with "G003220A" in the search box on HDDZone.com and order it online. HDDZone.com provide worldwide free shipping (7-20 business days), we also provide expedited shipping (3-7 days) such as DHL & UPS.

Step 3: Firmware Transfer on Toshiba PCB G003220A
In most cases, you need to transfer the "BIOS" chip (HDD firmware are usually stored in the "BIOS" chip or "Main Controller IC" chip) before you swap hard drive PCB, in order to make the donor board compatible with your HDD.

Step 4: Recover and Backup Data
After the firmware transfer is completed, the Toshiba hard drive PCB G003220A replacement repair process is finished! Connect your HDD to your PC and restart your computer, you will be able to recover data from your HDD now! Backup! Backup! Backup!

About Hard Drive PCB Components:

BIOS: All of the 8pins (4 pins on each sides) with 25P05VP,25P10VP,25F512,25F1024,25F1024AN,SST25VF512,SST25VF010, etc. are the BIOS. It is easy to be found, because there are not many 8pins chips on the PCB.

Main Controller IC: If there is no matching 8pins BIOS chip on the PCB, it means the BIOS is integrated on the Main Controller IC. It is more complex to exchange the Main Controller IC than exchange the BIOS. If you should do, please do several test on the HDD's PCBs which don't have the important data.

About Firmware Transfer Tool & Steps:

HDD PCB Firmware Transfer Tools:

• Hot air rework station;
• T6/T8 Screwdriver(available on HDDZone.com product page);
• Tweezers;

Steps to transfer firmware on the PCB:

1. Remove BIOS chip from the original PCB;
2. Remove BIOS chip from the donor PCB;
3. Solder the original BIOS chip to the donor PCB;

Tips: Most of the TV, phone, electronics repair shop can offer this firmware transfer service for just $5-20.

Contact US:

Please feel free to contact US if you have any questions, email us the clear photos of Toshiba PCB G003220A (both sides) by attachments to us will make everything easier! Email: sales@hddzone.com
