If you have ever experienced a hard drive failure, you know how frustrating and stressful it can be to lose your valuable data. One of the most common causes of hard drive failure is a damaged printed circuit board (PCB), which is responsible for controlling the communication between the drive's components and the computer's motherboard. Fortunately, in many cases, a damaged hard drive PCB can be repaired, and your data can be recovered without the need for expensive data recovery services. In this post, we will explain how to diagnose and fix a damaged hard drive PCB.
Diagnosing a Damaged Hard Drive PCB
The first step in repairing a damaged hard drive PCB is to diagnose the problem. Here are some signs that your hard drive PCB may be damaged:
- The hard drive is not recognized by the computer or BIOS.
- The hard drive makes clicking or buzzing noises.
- The hard drive spins up but does not read or write data.
- The hard drive shows incorrect capacity or model number.

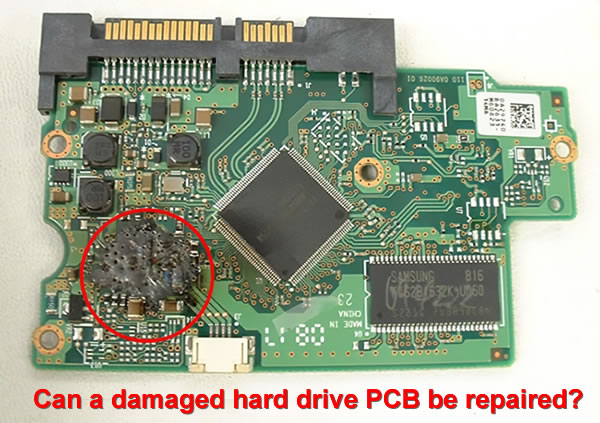

If you encounter any of these symptoms, you should check the PCB for physical damage, such as burn marks, blown capacitors, or broken connections. You can also try swapping the PCB with a similar one from an identical hard drive model, but be aware that this method may not work if the firmware on the original PCB is incompatible with the replacement PCB.
Repairing a Damaged Hard Drive PCB
If you have determined that your hard drive PCB is damaged and needs repair, here are some steps you can take:
1. Replace the damaged components: If you have identified specific components that are faulty, such as capacitors or resistors, you can try replacing them with new ones. This requires some soldering skills and a steady hand, as the components are usually very small and delicate. Of course, you can also replace the entire circuit board.
2. Swap the firmware chip (hard drive pcb firmware transfer): In some cases, the firmware chip on the PCB may be corrupted or damaged, causing the hard drive to malfunction. If you have a similar PCB with the same firmware version, you can try swapping the chips between them. This requires desoldering and resoldering the chip, which can be risky if you are not experienced with electronics.
3. Send the PCB for professional repair: If you are not comfortable with DIY repairs or have tried but failed to fix the PCB, you can send it to a professional repair service. There are many companies that specialize in hard drive PCB repair and can replace faulty components or reprogram the firmware chip. However, this option can be expensive and may not guarantee a successful recovery of your data.
Preventing Hard Drive PCB Damage
To avoid experiencing a damaged hard drive PCB in the first place, here are some tips:
- Handle your hard drive with care: Avoid dropping, shaking, or exposing your hard drive to extreme temperatures or humidity.
- Use a surge protector: A power surge or voltage spike can damage your hard drive PCB, so use a surge protector to protect your computer and peripherals.
- Backup your data regularly: Always have a backup of your important files on an external hard drive or cloud storage service.
In conclusion, a damaged hard drive PCB can be repaired in some cases, but it requires careful diagnosis and repair skills. If you are not confident in your ability to fix the PCB yourself, consider seeking professional help or data recovery services. Remember to take preventive measures to avoid hard drive damage and always backup your data to avoid losing it permanently.
